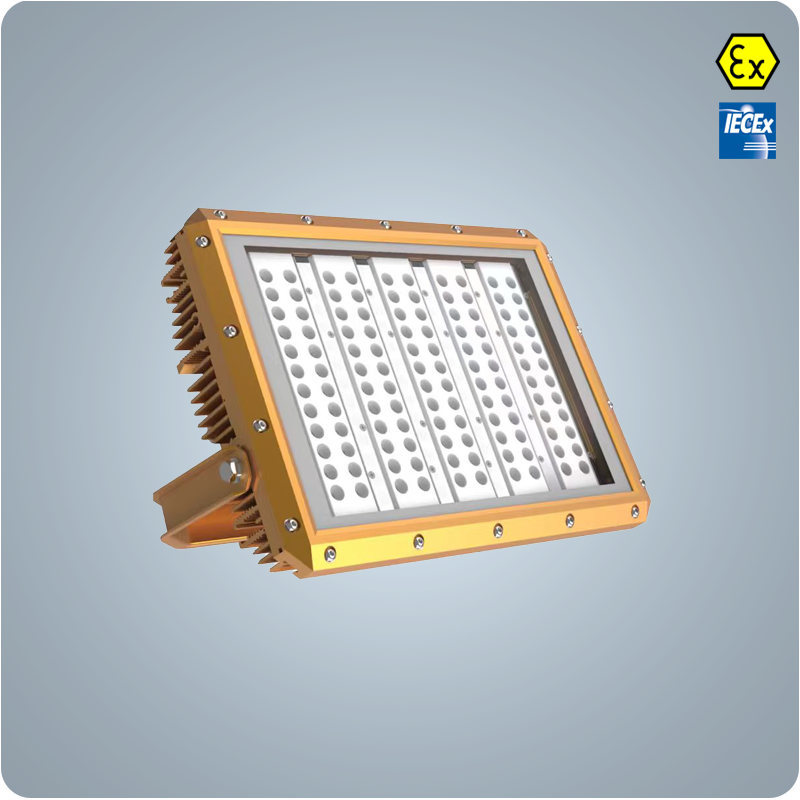

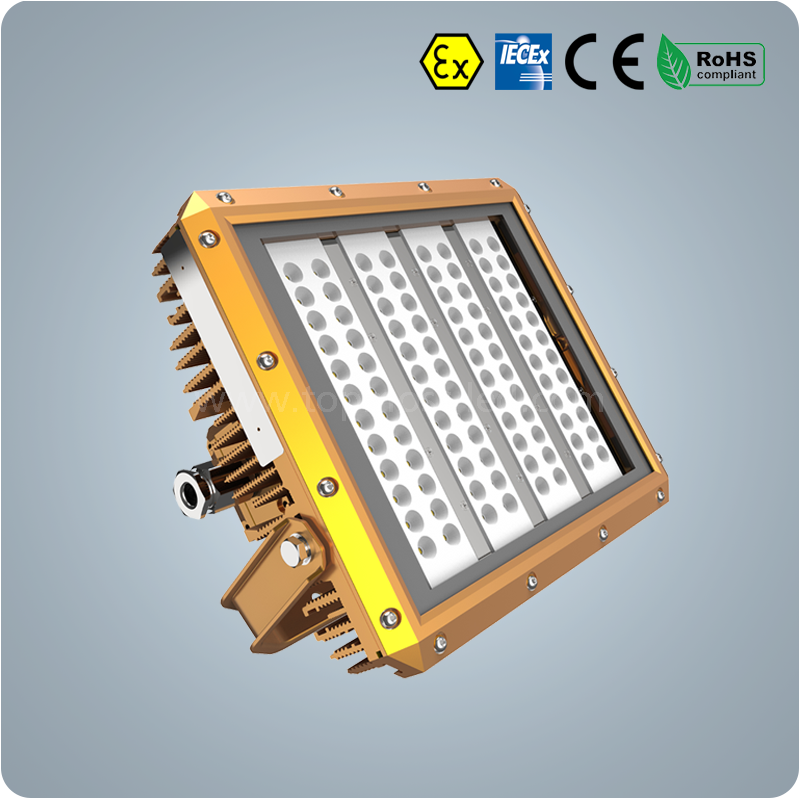

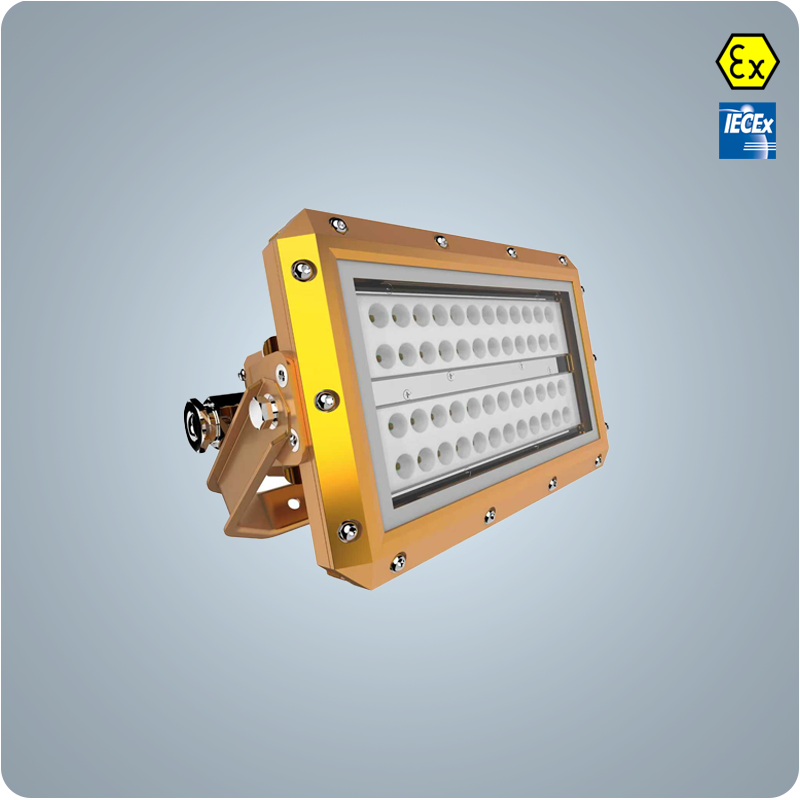

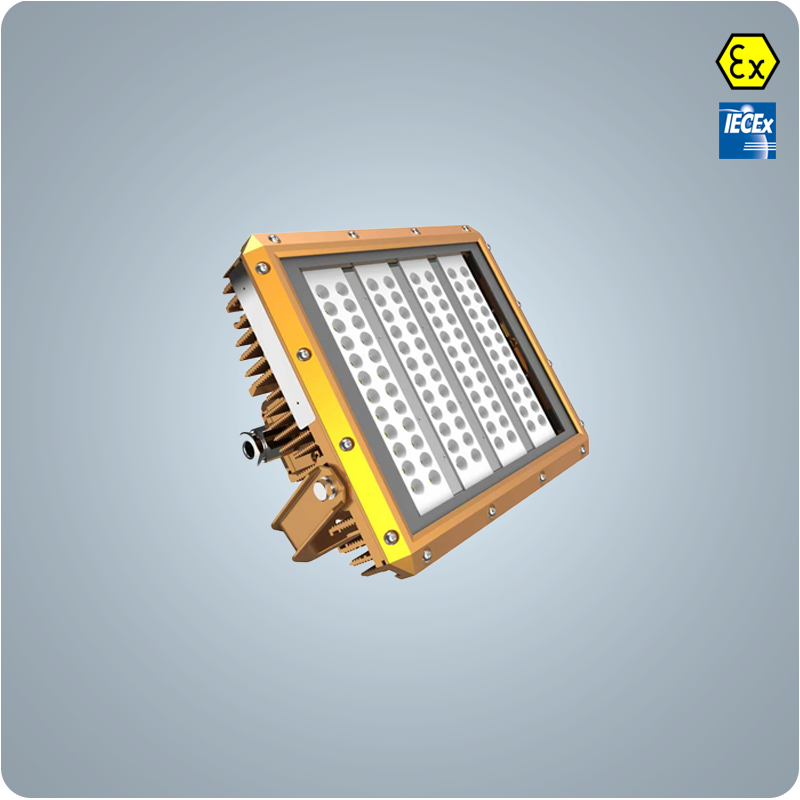

Jaguar Series LED Explosion-proof Lighting

Jaguar Series LED Explosion-proof Lighting

●Three types of using.LED FIoodIight, LED Canopy light and

   LEDStreet light.

●OSRAM/PHILIPS Led source, high lumen output aver 140lm/W.

●Modular design, available in 80W to 240W.

●Extruded Copper-free Aluminum, high intensity, can endure 20J

   impact

●Shock and vibration resistant.

●Own design and produced LED drivers are provide reliable operation

    in harsh environments.

●Capable to work on extreme high and low temperature -45℃-

   +60℃, keep good performance.

●IP66 and high corrosion resistance, can be used in ocean

   environment

●Lightning protection 6KV, THD≤5%.

●Various installation methods.

￥ 0.00
0.00


●Three types of using.LED FIoodIight, LED Canopy light and

   LEDStreet light.

●OSRAM/PHILIPS Led source, high lumen output aver 140lm/W.

●Modular design, available in 80W to 240W.

●Extruded Copper-free Aluminum, high intensity, can endure 20J

   impact

●Shock and vibration resistant.

●Own design and produced LED drivers are provide reliable operation

    in harsh environments.

●Capable to work on extreme high and low temperature -45℃-

   +60℃, keep good performance.

●IP66 and high corrosion resistance, can be used in ocean

   environment

●Lightning protection 6KV, THD≤5%.

●Various installation methods.

Power consumption80W100W120W150W200W240W
Item No.Ex-BJG80Ex-BJG100Ex-BJG120Ex-BJG150Ex-BJG200Ex-BJG240
Input voltage&frequencyAC 100-277V/47-62HzAC 100-277V/47-62HzAC 100-277V/47-62HzAC 100-277V/47-62HzAC 100-277V/47-62HzAC 100-277V/47-62Hz
Input current280～800mA360～1000mA430～1200mA540～1500mA720～2000mA860～2400mA
Power factor (PF)≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98
LED chipsOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPS
Luminous Flux9600lm12000lm14400lm18000lm24000lm28800lm
Colour rendering index (CRI)Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80
Colour temperatureWW:2800～3300K

PW:4700～5400K

CW:5700～7100K

WW:2800～3300K
PW:4700～5400K
CW:5700～7100K		WW:2800～3300K
PW:4700～5400K
CW:5700～7100K		WW:2800～3300K
PW:4700～5400K
CW:5700～7100K		WW:2800～3300K
PW:4700～5400K
CW:5700～7100K		WW:2800～3300K
PW:4700～5400K
CW:5700～7100K
Beam angle15°/40°/60°/80°/120°/SL (NOET1)15°/40°/60°/80°/120°/SL/SW/SM/ASW/ASM   (NOET2)15°/40°/60°/80°/120°/SL/SW/SM/ASW/ASM15°/40°/60°/80°/120°/SL15°/40°/60°/80°/120°/SL15°/40°/60°/80°/120°/SL
Working ambient temp.-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃
IP GradeIP66IP66IP66IP66IP66IP66
Lifspan≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs
HousingCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free Aluminium
Front CoverTempered glassTempered glassTempered glassTempered glassTempered glassTempered glass
Demensions330*215*150mm330*215*150mm330*215*150mm
330*330*150mm		330*330*150mm330*380*150mm330*450*150mm
Weight9kg12kg12kg12kg16kg18kg
NOTE1一SL(Street light)  NOTE2一SW-Symmetricwidelight, SM-Symmetric middle light, ASW-Asymmetric wide light, ASM-Asymmetric middle light
