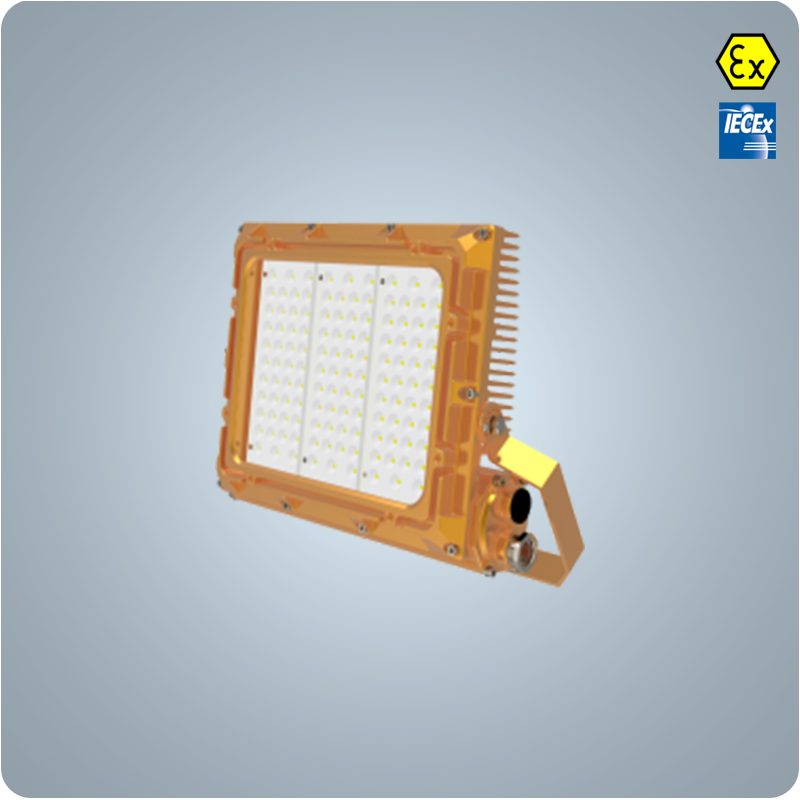

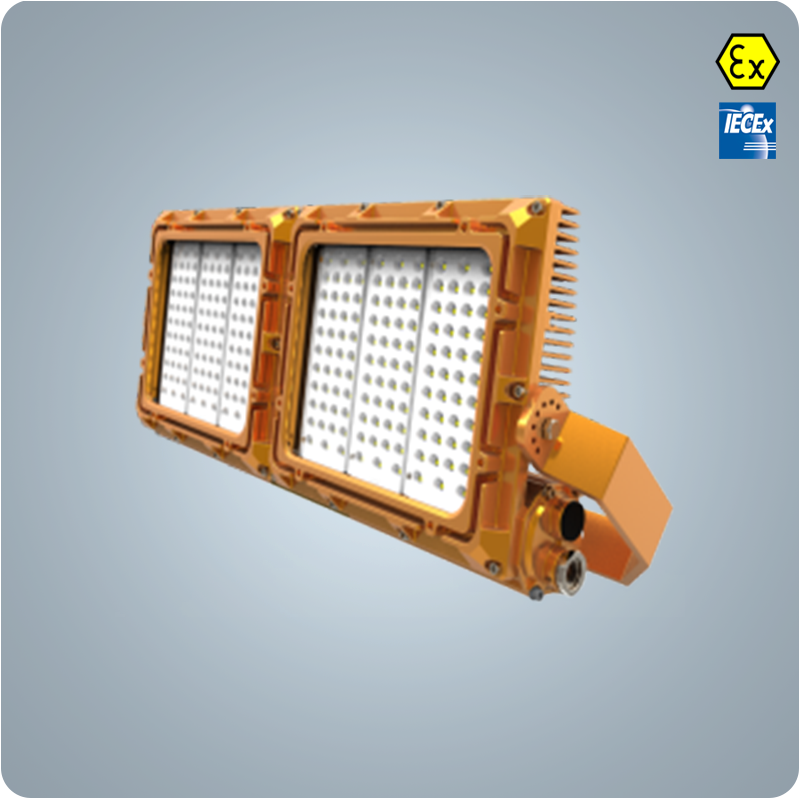

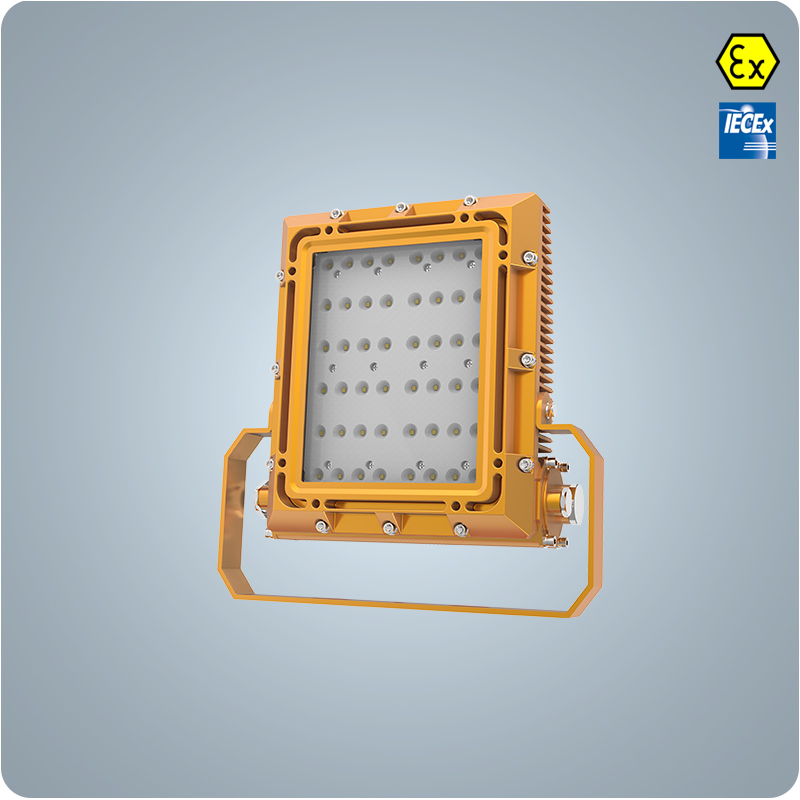

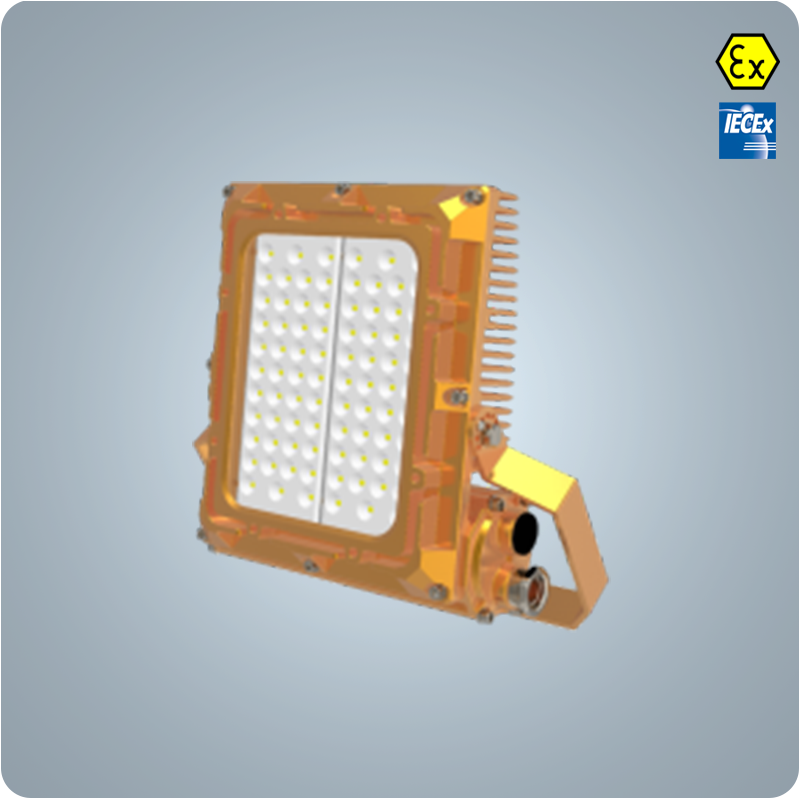

Jaguar D Series LED Explosion-proof Lighting

Jaguar D Series LED Explosion-proof Lighting

● Lighting can be use for floodlight, highbay, lowbay, canopy light, streetlight, etc.
● Osram led source, high lumen output 160lm/W.
● Modular design,available in 80W to 240W.
● Extruded copper-free aluminum, high intensity, can endure 20J / IK10 impact.High strength impact resistant ,
high corrosion resistance/marine grade.
● Shock and vibration resistant.
● Own design and produced LED drivers are provide reliable operation in harsh environments.
● Capable to work on extreme high and low temperature -45℃-+60℃，keep good performance.
● IP66 and high corrosion resistance, can be used in ocean environment.
● Lightning protection 6KV/8KV/10KV optional, THD≤5%.Constant current&protectedby surge protection ● Various installation methods.

￥ 0.00
0.00


● Lighting can be use for floodlight, highbay, lowbay, canopy light, streetlight, etc.
● Osram led source, high lumen output 160lm/W.
● Modular design,available in 80W to 240W.
● Extruded copper-free aluminum, high intensity, can endure 20J / IK10 impact.High strength impact resistant ,
high corrosion resistance/marine grade.
● Shock and vibration resistant.
● Own design and produced LED drivers are provide reliable operation in harsh environments.
● Capable to work on extreme high and low temperature -45℃-+60℃，keep good performance.
● IP66 and high corrosion resistance, can be used in ocean environment.
● Lightning protection 6KV/8KV/10KV optional, THD≤5%.Constant current&protectedby surge protection ● Various installation methods.

Power
80W100W120W150W200W250W
Item No.Ex-BJGD80Ex-BJGD100Ex-BJGD120Ex-BJGD150Ex-BJGD200Ex-BJGD250
Input voltageAC 100-277VAC 100-277VAC 100-277VAC 100-277VAC 100-277VAC 100-277V
Input current47-62Hz47-62Hz47-62Hz47-62Hz47-62Hz47-62Hz
Power factor≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98
LED chipsOSRAMOSRAMOSRAMOSRAMOSRAMOSRAM
Luminous Flux12000lm15000lm18000lm22500lm30000lm37500lm
CRIRa > 80Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80
Colour temp.WW:2800~4000K,PW:4000~5400K,CW:5400~7000KWW:2800~4000K,PW:4000~5400K,CW:5400~7000KWW:2800~4000K,PW:4000~5400K,CW:5400~7000KWW:2800~4000K,PW:4000~5400K,CW:5400~7000KWW:2800~4000K,PW:4000~5400K,CW:5400~7000KWW:2800~4000K,PW:4000~5400K,CW:5400~7000K
Beam angle40°/80°/120°/SL40°/80°/120°/SL40°/80°/120°/SL40°/80°/120°/SL40°/80°/120°/SL40°/80°/120°/SL
Working temp.-45°C~+60°C-45°C~+60°C-45°C~+60°C-45°C~+60°C-45°C~+60°C-45°C~+60°C
IP GradeIP66IP66IP66IP66IP66IP66
Lifspan≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs
HousingCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free Aluminium
Front CoverTempered glassTempered glassTempered glassTempered glassTempered glassTempered glass
Dimensions220 * 273 * 85mm220 * 273 * 85mm220 * 273 * 85mm220 * 273 * 85mm/330 * 273 * 85mm330 * 273 * 85mm330 * 273 * 85mm
Weight7kg7kg7kg7kg/9.5kg9.5kg9.5kg
RemarkPower,color temp,housing color,mounting, cable glands,accessory can be  customized.Power,color temp,housing color,mounting, cable glands,accessory can be  customized.Power,color temp,housing color,mounting, cable glands,accessory can be  customized.
