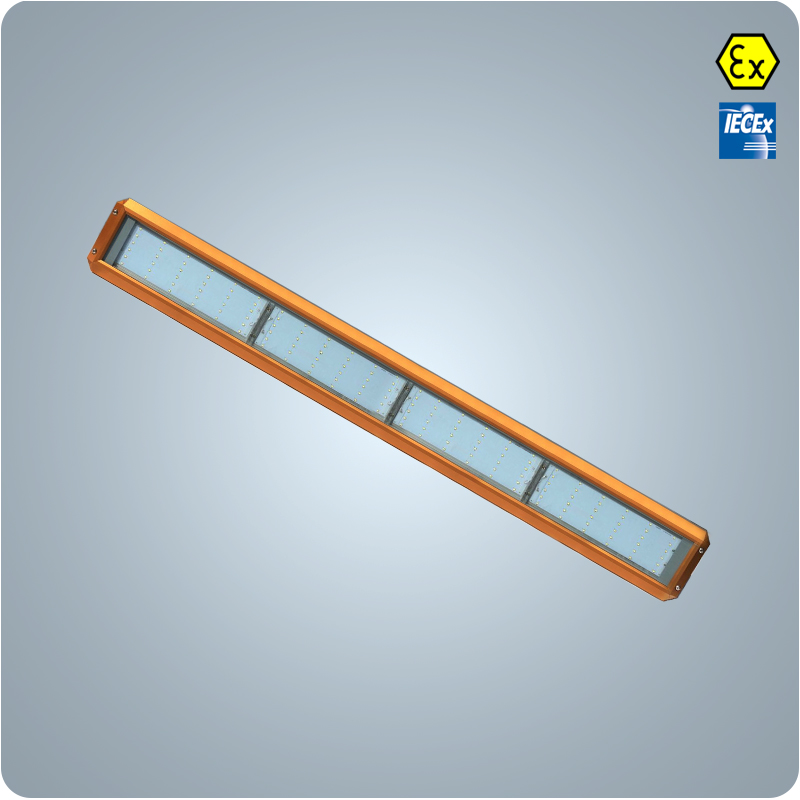

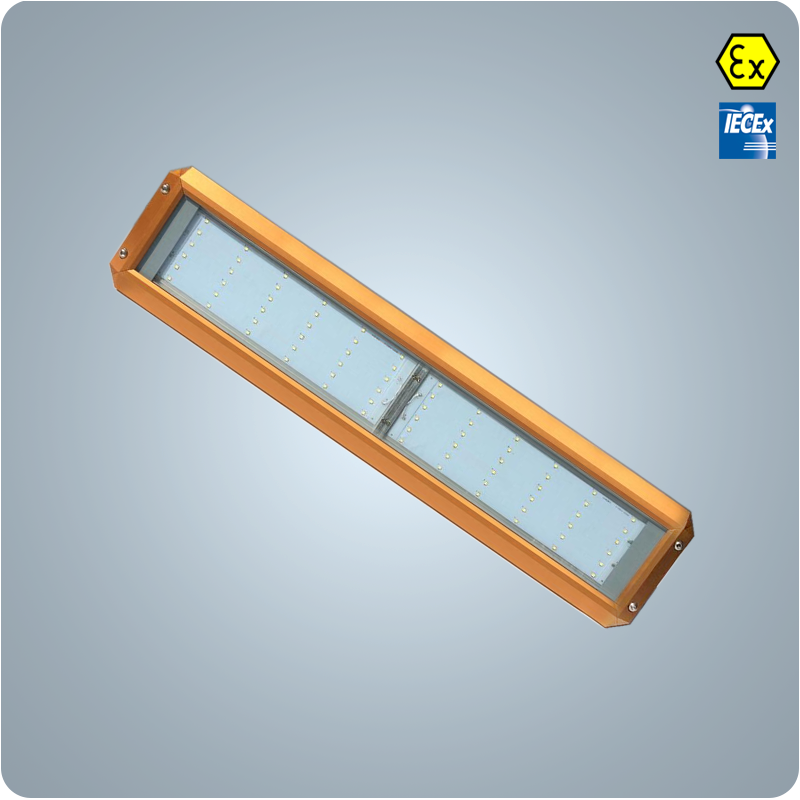

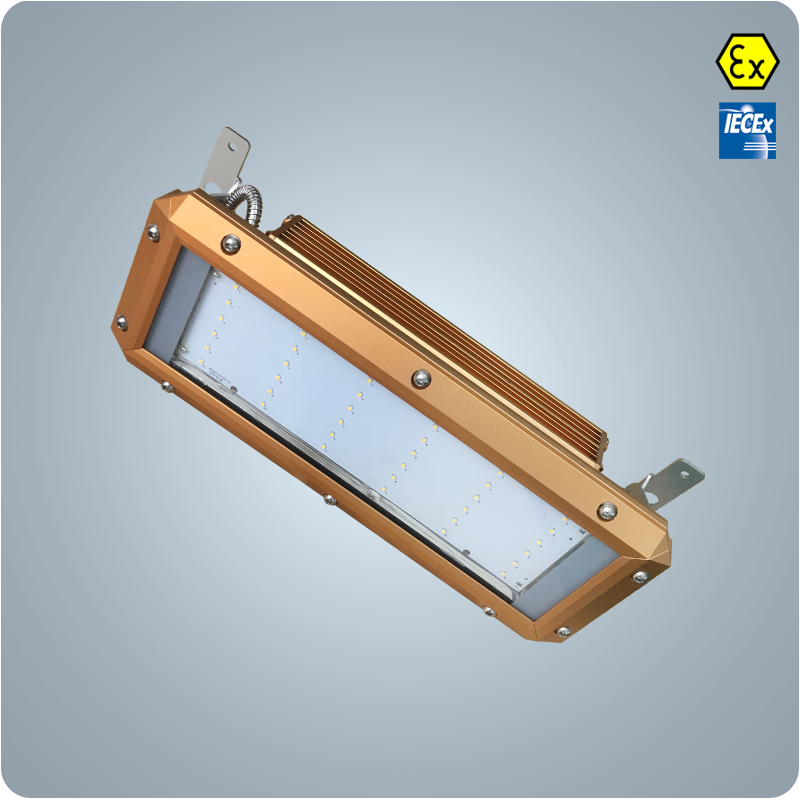

Cheetah Series LED Explosion-proof Lighting

Cheetah Series LED Explosion-proof Lighting

●Fourtypes of using.LED FIoodIight, LED Emergency light and Indicating light.

●Length available 400mm,700mm and 1300mm.

●OSRAM/PHILIPS led source, high lumen output over 140lm/W.

●Extruded Copper-free Aluminum,high intensity,endure 20J impact.

●Shock and vibration resistant

●Own design and produced LED drivers are provide reliable operation.

●Capable to work on extreme high and low temperature -45℃~+55℃，keep good performance.

●IP66,WF2, can be used in ocean environment.

●Lightning protection 6KV, THD≤5％.

●Various installations.

￥ 0.00
0.00


●Fourtypes of using.LED FIoodIight, LED Emergency light and Indicating light.

●Length available 400mm,700mm and 1300mm.

●OSRAM/PHILIPS led source, high lumen output over 140lm/W.

●Extruded Copper-free Aluminum,high intensity,endure 20J impact.

●Shock and vibration resistant

●Own design and produced LED drivers are provide reliable operation.

●Capable to work on extreme high and low temperature -45℃~+55℃，keep good performance.

●IP66,WF2, can be used in ocean environment.

●Lightning protection 6KV, THD≤5％.

●Various installations.

Power consumption18W30W36W48W56W72W
Item No.Ex-BCT18/Ex-BCTE18Ex-BCT30//Ex-BCTE30Ex-BCT36/Ex-BCTE36Ex-BCT48/Ex-BCTE48Ex-BCT56//Ex-BCTE56Ex-BCT72/Ex-BCTE72
Input   voltage&frequencyAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63Hz
Input   current60～180mA100～300mA120～360mA170～480mA200～560mA250～720mA
Power   factor (PF)≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98
LED   chipsOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPS
Luminous   Flux2160lm3600lm4320lm5760lm6720lm8640lm
Colour   rendering index (CRI)Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80
Colour   temperatureWW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K
Beam   angle80°/140°80°/140°80°/140°80°/140°80°/140°80°/140°
Working   ambient temp.-45℃～+55℃
    -10℃～+55℃(NOTE1)		-45℃～+55℃
    -10℃～+55℃(NOTE1)		-45℃～+55℃
    -10℃～+55℃(NOTE1)		-45℃～+55℃
    -10℃～+55℃(NOTE1)		-45℃～+55℃
    -10℃～+55℃(NOTE1)		-45℃～+55℃
    -10℃～+55℃(NOTE1)
IP GradeIP66IP66IP66IP66IP66IP66
Lifspan≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs
HousingCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free Aluminium
Front   CoverTempered glassTempered glassTempered glassTempered glassTempered glassTempered glass
Demensions400*160*122mm/
    708*160*122mm		400*160*122mm/
    708*160*122mm		400*160*122mm/
    708*160*122mm/
    1346*160*122mm		400*160*122mm/
    708*160*122mm/
    1346*160*122mm		400*160*122mm/
    708*160*122mm/
    1346*160*122mm		400*160*122mm/
    708*160*122mm/
    1346*160*122mm
Weight3.5kg/7kg3.5kg/7kg3.5kg/7kg/9.5kg3.5kg/7kg/9.5kg3.5kg/7kg/9.5kg3.5kg/7kg/9.5kg
NOTE1--10~+55℃(Emergency   Light 2-4hrs optional)
