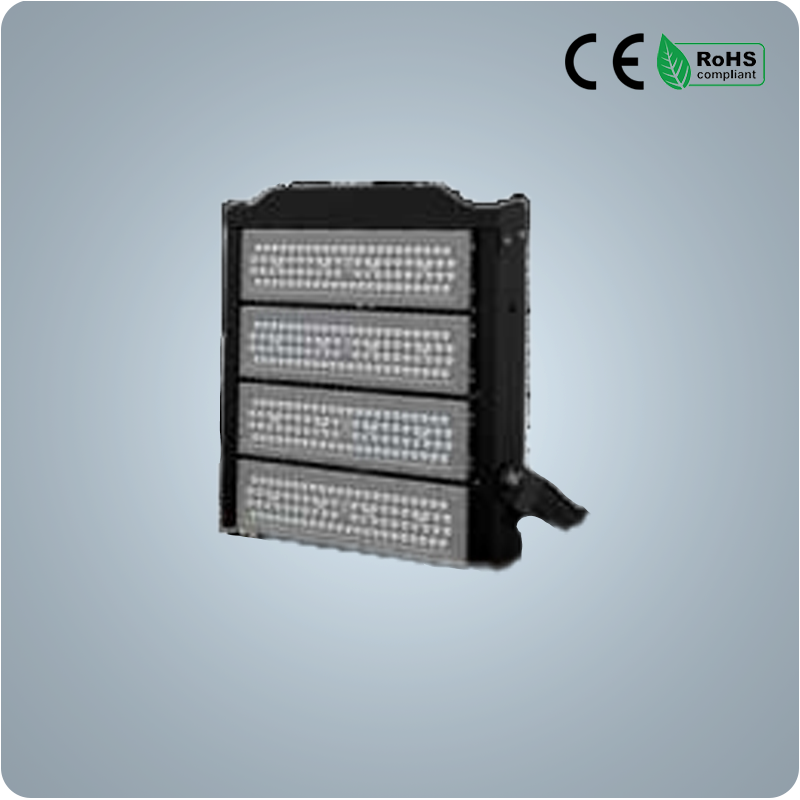

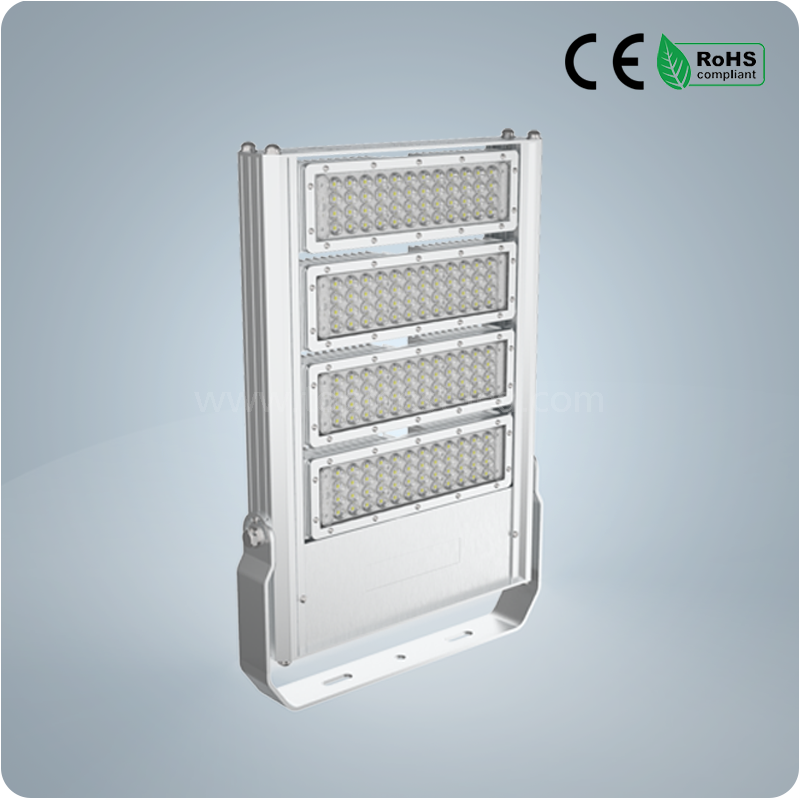

Black Leopard Series LED Industrial Lighting

Black Leopard Series LED Industrial Lighting

●OSRAM/PHILIPS Led source, high lumen output over 140lm/W.

●Modular design, available in 60W to 1000W.

●Copper free aluminum, marine grade anti-corrosion.

●Shock and vibration resistant.

●Own design and produced LED drivers are provide reliable operation in harsh environments.

●Capable to work on extreme high and low temperature -45℃-+60℃, keep good performance.

●IP66 and high corrosion resistance, can be used in ocean environment.

●Lightning protection 6KV, THD≤5%.

￥ 0.00
0.00


●OSRAM/PHILIPS Led source, high lumen output over 140lm/W.

●Modular design, available in 60W to 1000W.

●Copper free aluminum, marine grade anti-corrosion.

●Shock and vibration resistant.

●Own design and produced LED drivers are provide reliable operation in harsh environments.

●Capable to work on extreme high and low temperature -45℃-+60℃, keep good performance.

●IP66 and high corrosion resistance, can be used in ocean environment.

●Lightning protection 6KV, THD≤5%.

Power   consumption80W100W120W160W200W240W300W360W450W500W750W1000W
Item   No.BBL80BBL100BBL120BBL160BBL200BBL240BBL300BBL360BBL450BBL500BBL750BBL1000
Input   voltage&frequencyAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63HzAC 100-277V / 47~63HzAC 100-277V   /47~63HzAC 100-277V /   47~63HzAC 100-277V   /47~63HzAC 100-277V /   47~63HzAC 100-277V /   47~63Hz
Input   current280～800mA360～1000mA430～1200mA570～1600mA720～2000mA860～2400mA1000～3000mA1300～3600mA1600～4500mA1800～5000mA2700～7500mA3600～10000mA
Power   factor (PF)≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98
LED   chipsOSRAM/HPILIPSOSRAM/HPILIPSOSRAM/HPILIPSOSRAM/HPILIPSOSRAM/HPILIPSOSRAM/HPILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPSOSRAM/PHILIPS
Luminous   Flux9600lm12000lm14400lm19200lm24000lm28800lm36000lm43200lm54000lm60000lm90000lm1200000lm
Colour   rendering index (CRI)Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80Ra > 80
Ra >     80
Ra > 80Ra > 80Ra > 80
Colour   temperatureWW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K		WW:2800～3300K
    PW:4700～5400K
    CW:5700～7100K
Beam   angle60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)60°/90°/120°/SL(Note1)
Working   ambient temp.-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃-45℃～+60℃
IP   GradeIP66IP66IP66IP66IP66IP66IP66IP66IP66IP66IP66IP66
Lifspan≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs≥60000hrs
HousingCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free AluminiumCopper free Aluminium
Front   CoverPolycarbooatePolycarbooatePolycarbooatePolycarbooatePolycarbooatePolycarbooatePolycarbooatePolycarbooatePolycarbooatePolycarbooatePolycarbooatePolycarbooate
Demensions297*331*206mm297*331*206mm297*331*206mm428*331*206mm512*331*206mm512*331*206mm596*331*206mm360*643*100mm360*643*100mm444*643*100mm612*643*100mm680*726*100mm
Weight7kg7kg7kg7.8kg8.6kg8.6kg9.4kg10.2kg10.2kg12kg15.2kg18.4kg
Note1--SL: Street Light
