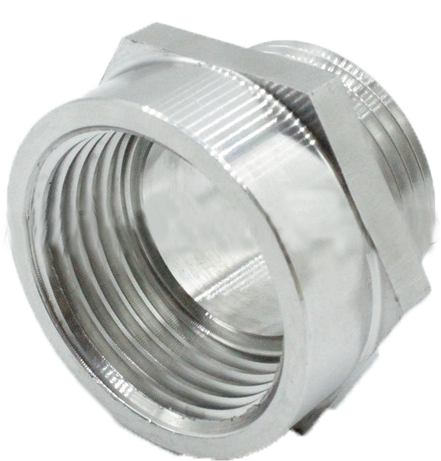

Explosion Proof Cable Gland

Explosion Proof Cable Gland

￥ 0.00
0.00

Ex Mark    II 2 G Ex d IIC Gb
    II 2 G Ex e IIC Gb
    II 2 D Ex tb IIIC Db IP67		    Zone 1, Zone 21; Zone   2, Zone 22
    Class I, Division 1&2, Groups   A B C D;
    Class II, Division 1&2,   Groups E F G;
    Class III
Material    Stainless steel / Nickel plated brass, optional.
    High anti-corrosion, marine grade.
Temperature    -50~+130°C    IP Grade      IP67
Thread   Size(Male)
    A(mm)		Thread Size(Female)
    B(mm)		Cable diameter
    ΦD(mm)		Wrench size
    W1 (mm)		Wrench size
    W2 (mm)
M16×1.5M16×1.58~102020
M16×1.5M16×1.56~82424
M20×1.5M20×1.511~14.32424
M20×1.5M20×1.58~102424
M20×1.5M20×1.56~82424
M25×1.5M25×1.513~20.23030
M25×1.5M25×1.512~173030
M25×1.5M25×1.511~14.33030
M32×1.5M32×1.519~26.54040
M32×1.5M32×1.517~224040
M32×1.5M32×1.513~20.24040
M40×1.5M40×1.525~32.55050
M50×1.5M50×1.531.5~42.36060
M63×1.5M63×1.542.5~54.37575
M75×1.5M75×1.554.5~65.38585
M90×2.0M90×2.067~77.6105105
M100×2.0M100×2.075~88120120
M115×2.0M115×2.086~98130130
M130×2.0M130×2.0100~113155155
NOTE: The above A, B, ΦD, W1, W2 must be selected and matched according to requirements.
Ex MarkII 2 G Ex db IIC Gb
II 2 D Ex tb IIIC Db IP66		Zone 1, Zone 21; Zone   2, Zone 22
Class I, Division 1&2, Groups A B C D;
Class II, Division 1&2, Groups E F G;
Class III
Cable
Diameter		φ8~φ18mmGrand
Thread

M20x1.5 / M25x1.5

/ NPT3/4-Transfer-M20x1.5 / M25x1.5 /  NPT3/4  / M32

HousingStainless   steel, high anti-corrosion, marine grade.
Temperature-45~+100°CIP GradeIP66

Outer
    Thread		Inter ThreadHexagon,
    Dimensions		Applicable   Cable
    (Diameter)
M20x1.5/
    M25x1.5/
    NPT3/4		M20x1.5
    M25x1.5
    NPT3/4		28mmφ8~φ18mm
M32x1.532mmφ8~φ18mm
