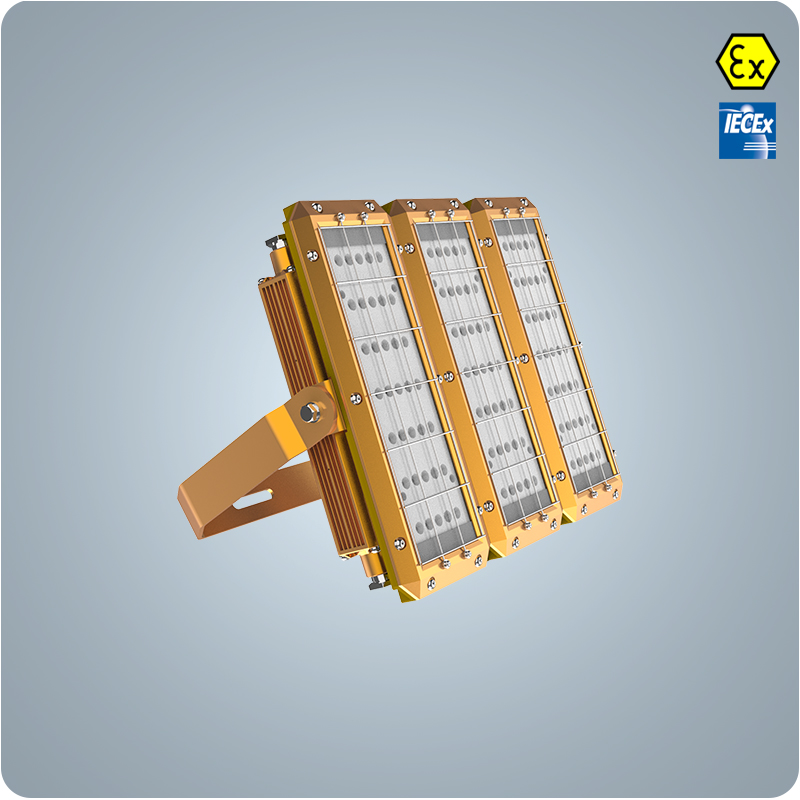

Cheetah Series LED Explosion-proof Lighting

Cheetah Series LED Explosion-proof Lighting

● Can be used as loodlight, tunnel light,   street light and emergency light.

● High power can be customized.
● Using OSRAM high luminous efficiency LED,   the luminous efficiency reaches 140lm/W. The whole lighting effect is 110lm/W.
● Anti-glare.
● Extruded copper-free aluminum housing,   high intensity, which can endure 20J impact.
● Shock and vibration resistant.
● Reliable LED drivers for harsh   environment.
● Capable to work on extreme high and low   temperature -45°C~+60°C.
● IP66 and high corrosion resistance, can be   used in ocean environment.
● Lightning protection 6KV, THD≤10%.
● 5 years warranty.
● Emergency function available, battery   1.5~2 hours.


￥ 0.00
0.00

● Can be used as loodlight, tunnel light,   street light and emergency light.

● High power can be customized.
● Using OSRAM high luminous efficiency LED,   the luminous efficiency reaches 140lm/W. The whole lighting effect is 110lm/W.
● Anti-glare.
● Extruded copper-free aluminum housing,   high intensity, which can endure 20J impact.
● Shock and vibration resistant.
● Reliable LED drivers for harsh   environment.
● Capable to work on extreme high and low   temperature -45°C~+60°C.
● IP66 and high corrosion resistance, can be   used in ocean environment.
● Lightning protection 6KV, THD≤10%.
● 5 years warranty.
● Emergency function available, battery   1.5~2 hours.


Model No.Ex-BCT(E)50*2Ex-BCT(E)50*3Ex-BCT(E)50*4
Power100W                                             150W                                                  200W
Input Voltage&Frequency100~277VAC/50-60Hz
Input Current360~1000mA                              540~1500mA                                   720~2000mA
Power Factor≥0.95
LED BrandOSRAM
Luminous Flux11000lm16500lm22000lm
CRI

    CCT

    Beam Angle		Ra>70
WW: 2800~3300K
PW: 4700~5400K
CW: 5700~7100K
80°/140°
Working Ambient Temp.-45°C~+55°C / -10°C~+50°C(emergency lighting)
IP GradeIP66
Lifespan≥50,000 hours
HousingCopper-free AL
Front CoverTempered glass
Dimension450*360*122.5mm                   450*520*122.5mm                   530*854*122.5mm
Weight16kg24kg32kg
Remark: ①When a model number contains E , it means that this model is   an emergency
    light. Emergency power: 8-10W , emergency time   1 .5 hours .
