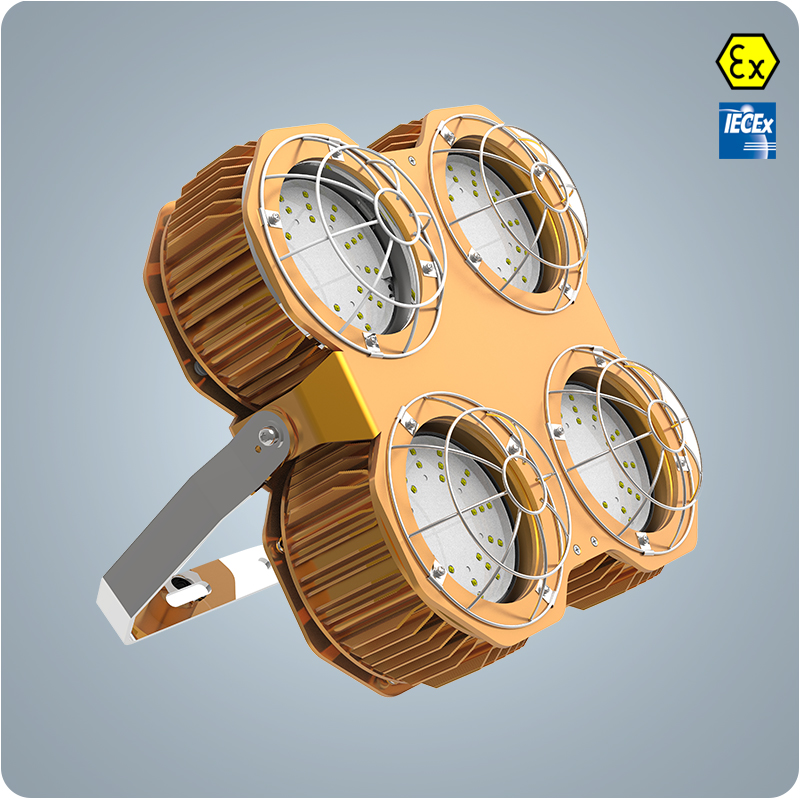

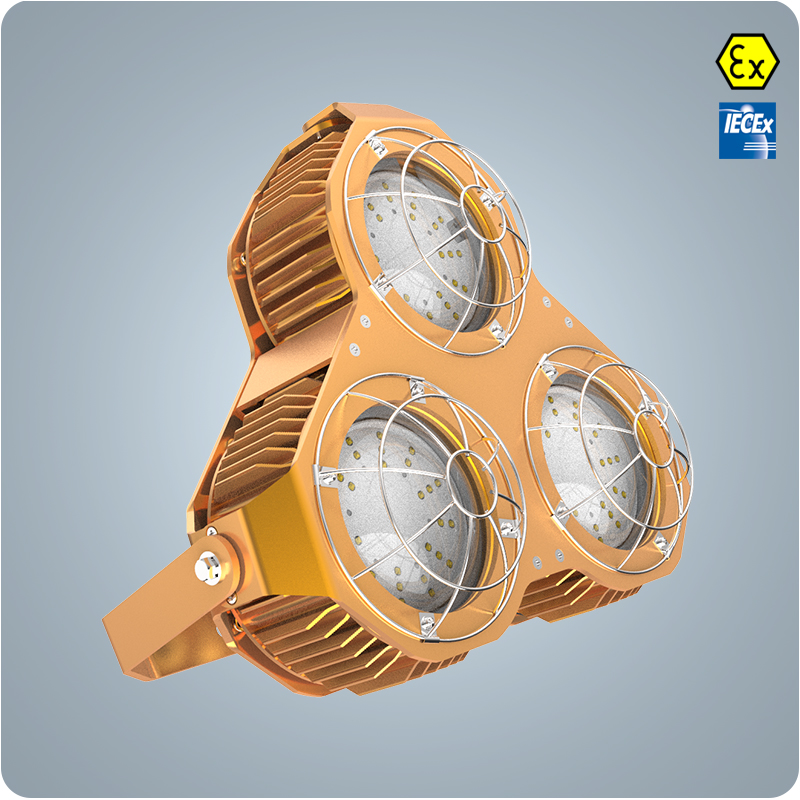

Clouded Leopard Series LED Explosion-proof Lighting

Clouded Leopard Series LED Explosion-proof Lighting

● High power lighting solution for Zones   1&21, Class I, Division 1. Maximum power up to 200W.
● Using OSRAM high luminous efficiency LED,   the luminous efficiency reaches 140lm/W. The whole lighting effect is
             100lm/W.
● 360° annular LED light source   distribution, anti-glare .
● Extruded copper-free aluminum housing,   high intensity, which can endure 20J impact.
    ● Shock and vibration resistant.
● Reliable LED drivers for harsh   environment.
● Capable to work on extreme high and low   temperature -45°C~+60°C.
    ● IP66 and high corrosion resistance, can be   used in ocean environment.
    ● Lightning protection 6KV, THD≤10% .
    ● Various installation methods .
    ● 5 years warranty.


￥ 0.00
0.00

● High power lighting solution for Zones   1&21, Class I, Division 1. Maximum power up to 200W.
● Using OSRAM high luminous efficiency LED,   the luminous efficiency reaches 140lm/W. The whole lighting effect is
             100lm/W.
● 360° annular LED light source   distribution, anti-glare .
● Extruded copper-free aluminum housing,   high intensity, which can endure 20J impact.
    ● Shock and vibration resistant.
● Reliable LED drivers for harsh   environment.
● Capable to work on extreme high and low   temperature -45°C~+60°C.
    ● IP66 and high corrosion resistance, can be   used in ocean environment.
    ● Lightning protection 6KV, THD≤10% .
    ● Various installation methods .
    ● 5 years warranty.




Model No.
        Power
Ex-BLP50*2
       100W		Ex-BLP40*3
    120W		Ex-BLP50*3
        150W		Ex-BLP40*4
    160W		Ex-BLP50*4
        200W
Input Voltage&Frequency                                                                100~277VAC/50-60Hz
Input   Current360~1000mA430~1200mA540~2600mA570~1600mA720~2000mA
Power   Factor≥0.95
LED   BrandOSRAM
Luminous Flux
  12000lm
  14400lm
  18000lm
  19200lm
   24000lm
CRIRa >70

WW: 2800~3300K
CCTPW:   4700~5400K

CW: 5700~7100K
Working Ambient Temp.    -45°C~+60°C
IP   GradeIP66
Lifespan≥50,000 hours
L70≥50,000   hours
HousingCopper-free AL
Front   CoverTempered glass
