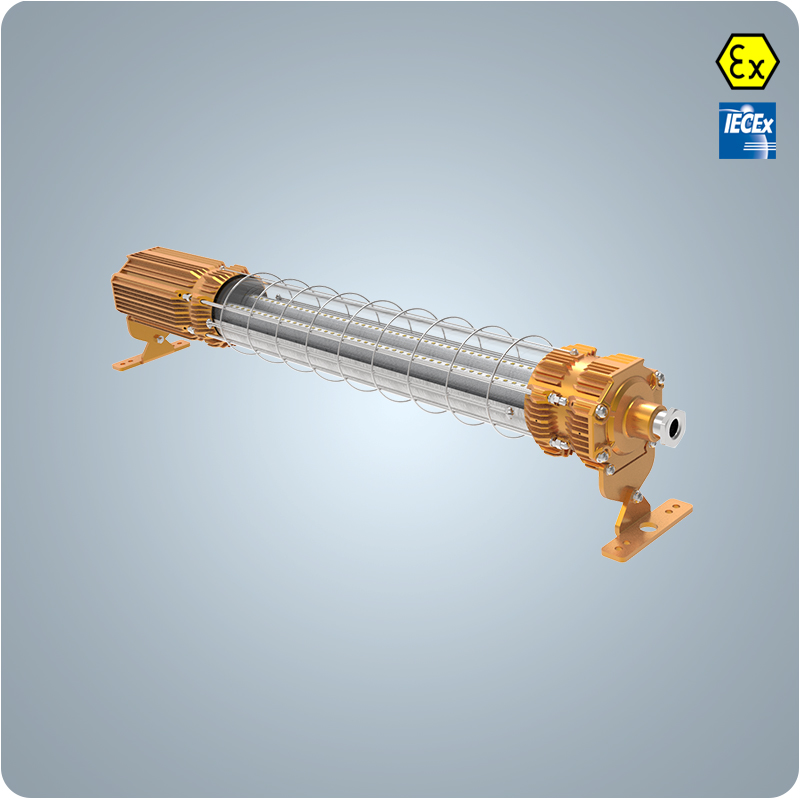

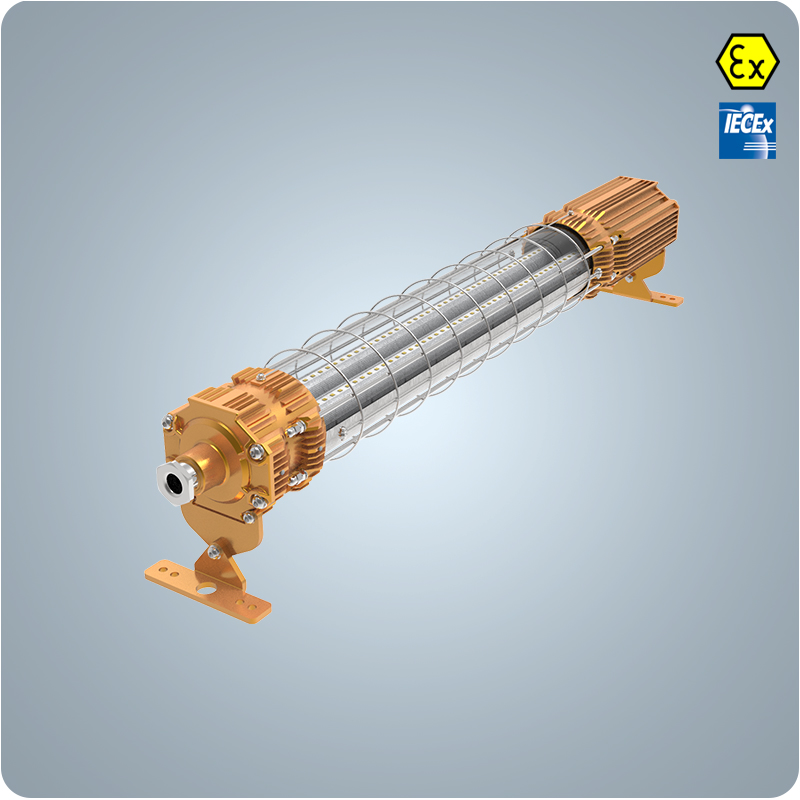

Asiatic Cheetah Series LED Explosion-proof Lighting

Asiatic Cheetah Series LED Explosion-proof Lighting

● Using OSRAM high luminous efficiency LED,   the luminous
          efficiency reaches 140lm/W. The whole lighting effect is
          100lm/W.
● 360° annular LED light source   distribution, anti-glare .

    ● Extruded copper-free aluminum housing, high   intensity,
     which can endure 20J impact.

    ● Shock and vibration resistant.
● Reliable LED drivers for harsh   environment.
● Capable to work on extreme high and low   temperature
     -45°C~+60°C.
● IP66 and high corrosion resistance, can be   used in ocean
          environment.
● Lightning protection 6KV, THD≤5% .

    ● Various installation methods .

    ● Emergency function is available, normal   emergency time
        1.5   hours, longer time can be customized.

    ● 5 years warranty.


￥ 0.00
0.00

● Using OSRAM high luminous efficiency LED,   the luminous
          efficiency reaches 140lm/W. The whole lighting effect is
          100lm/W.
● 360° annular LED light source   distribution, anti-glare .

    ● Extruded copper-free aluminum housing, high   intensity,
     which can endure 20J impact.

    ● Shock and vibration resistant.
● Reliable LED drivers for harsh   environment.
● Capable to work on extreme high and low   temperature
     -45°C~+60°C.
● IP66 and high corrosion resistance, can be   used in ocean
          environment.
● Lightning protection 6KV, THD≤5% .

    ● Various installation methods .

    ● Emergency function is available, normal   emergency time
        1.5   hours, longer time can be customized.

    ● 5 years warranty.


Model No.  Ex-BAC(E)10Ex-BAC(E)18Ex-BAC(E)24Ex-BAC(E)36Ex-BAC(E)48Ex-BAC(E)56Ex-BAC(E)60Ex-BAC(E)72
Power10W                            18W                     24W                     36W                      48W                    56W                      60W                     72W
HID/HPS Equiv .20W30/36W40/50W70/80W80/100W100/120W120W150W
Input Voltage
    &Frequency		100~277VAC/50-60Hz
Input Current36~100mA65~180mA86~240mA130~360mA174~480mA202~560mA212~600mA260~720mA
Power Factor≥ 0.95
LED BrandOSRAM
Luminous Flux1000lm             1800m           2400lm          3600lm          4800lm          5600lm          6000lm          7200lm
CRIRa>90
CCTWW: 2800~3300K
    PW: 4700~5400K
    CW: 5700~7100K
Beam Angle120°
Working
    Ambient Temp.		-45°C~+60°C, -10°C~+50°C(emergency light)
IP GradeIP66
Lifespan≥50,000 hours
HousingCopper-free AL
Front CoverTempered glass
Dimensionφ 110*400mm
    φ 110*700mm
    φ 110*1000mm
    φ 110*1300mm
Weight3.5kg / 5.5kg / 7.5kg / 12.5kg
Warranty5 years
