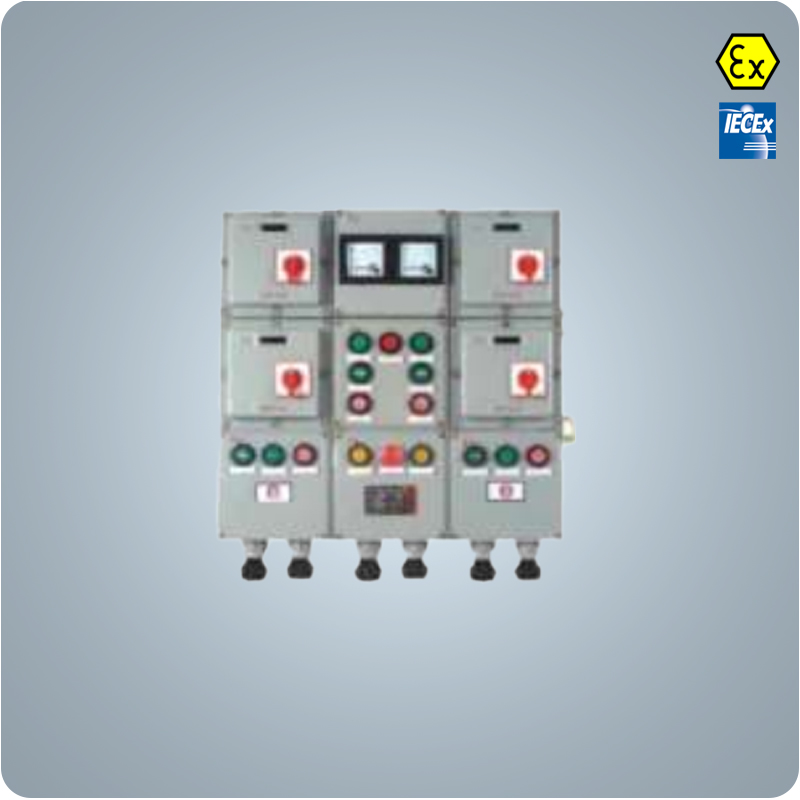

Ex-BJB-DP Group Explosion-proof Distribution Panel

Ex-BJB-DP Group Explosion-proof Distribution Panel

  ● Modular   design, each loop can be freely combined.
      ● It is equipped with high-break   miniature circuit breaker or molded case circuit breaker, which can be opened   and closed by
         the handle on the control   panel.
      ● The signal lamp is connected.
      ● With overload and short circuit   protection function, can be produced according to user requirements with   leakage
         protection function.
      ● It can be specially made   according to user's requirement.
      ● Can be customized according to   customer requirements of flameproof Gland.


￥ 0.00
0.00

  ● Modular   design, each loop can be freely combined.
      ● It is equipped with high-break   miniature circuit breaker or molded case circuit breaker, which can be opened   and closed by
         the handle on the control   panel.
      ● The signal lamp is connected.
      ● With overload and short circuit   protection function, can be produced according to user requirements with   leakage
         protection function.
      ● It can be specially made   according to user's requirement.
      ● Can be customized according to   customer requirements of flameproof Gland.


  Ex MarkII 2 G Ex db IIC T6/T5/T4 Gb
II 2 G Ex db IIB T6/T5/T4 Gb
II 2 G Ex eb IIC T6/T5/T4 Gb
II 2 D Ex tb IIIC T80°C / T95°C /   T130°C Db IP66		Zone 1, Zone 21; Zone 2, Zone 22
Class I, Division 1&2, Groups   A B C D;
Class II, Division 1&2,   Groups E F G;
Class III
  Housing
       Material		Stainless steel / Aluminium Alloy / GRP,    optional.  Applicable
Glands		M20~M100 (including metric thread, inch thread, pipe thread, NPT thread)
  Temperature-50~+130°CIP GradeIP65 / IP66
  Rated Voltage

Rated voltage: 110 Vac / 240 Vac / 380 Vac / 450V… 6KV;

Rated Insulation Voltage: up to 7.2KV;

Rated Impulse Withstand Voltage: up to 60KV;
Dielectric Test Voltage: up to 20KV.		Rated          Current

Rated Current: 1A / 2A / 5A / 10A / 20A / 32A / 63A... 630A;

Rated Short Time Withstand Current: up to 25KA/1Sec;

Rated Peak Withstand Current: up to    62.5 kA/1sec.
  MountingCeiling/Wall/Seat/etc.Rated          Conductor1~300mm²,    Max. 300mm2
  Executive
       Standard		EN/IEC 60079-0 / EN/IEC 60079-1 / EN/IEC 60079-7 / EN/IEC 60079-31 / IEC 60947-1 / IEC 60947-2
