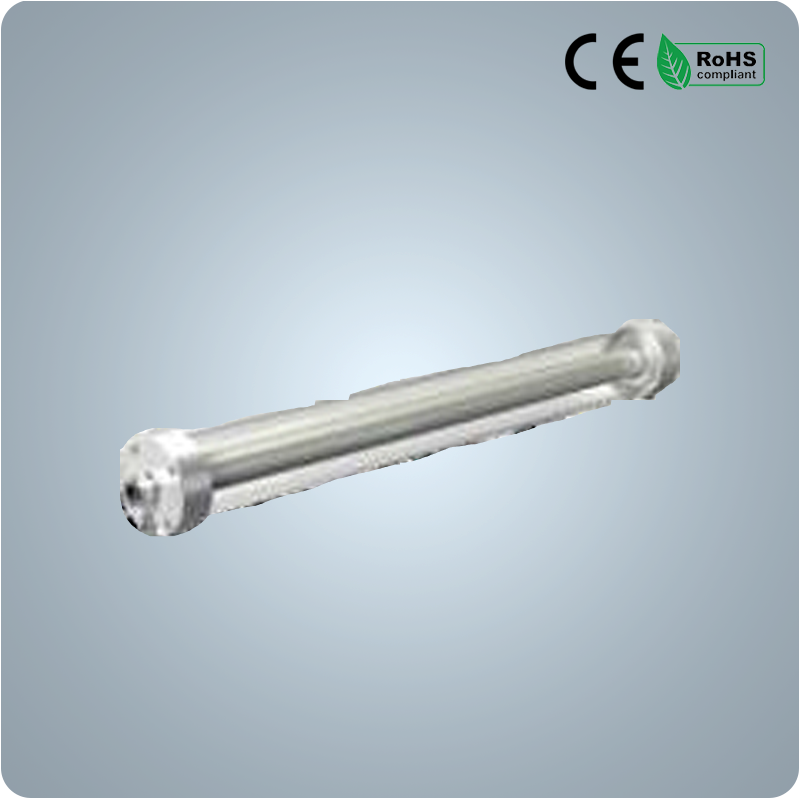

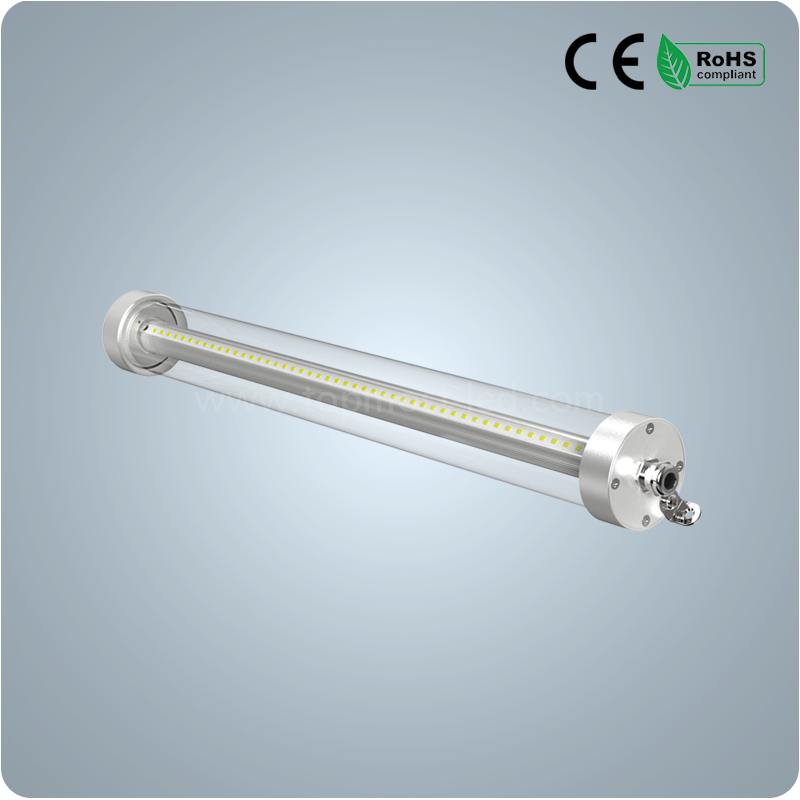

Asiatic Cheetah Series LED Industrial Lighting

Asiatic Cheetah Series LED Industrial Lighting

Replace conventional fluorescent lights.

        High flux sMD LED chips, Ra>80.

ACHV solution, no driver.

        High Iumi nous efficiency, soft light.

        Lifespan: 50,000hours.

        HB unique designs.

Patented fixing method for the PCB andinternal driver,anti-vibration.

Low harmonic current on the grid, without any

        pollution.

Intelligent Version Available: built-in dimming circuit and interface, can control the brightness of single light or group lights.


￥ 0.00
0.00


Replace conventional fluorescent lights.

        High flux sMD LED chips, Ra>80.

ACHV solution, no driver.

        High Iumi nous efficiency, soft light.

        Lifespan: 50,000hours.

        HB unique designs.

Patented fixing method for the PCB andinternal driver,anti-vibration.

Low harmonic current on the grid, without any

        pollution.

Intelligent Version Available: built-in dimming circuit and interface, can control the brightness of single light or group lights.


Power consumption600mm-18/24W900mm-24/36W
1200mm-36/48/56W1500mm-48/50/56W
Item no.BAC600BAC900
BAC1200BAC1500
Input voltage & frequencyAC 100-277V / 50-60HzAC 100-277V / 50-60Hz
AC 100-277V / 50-60HzAC 100-277V / 50-60Hz
Input current65~240mA85~360mA
130~560mA173~560mA
Power factor (PF)≥ 0.95≥ 0.95
≥ 0.95≥ 0.95
LED chipsSEOULSEOUL
SEOULSEOUL
Luminous flux1800~2400lm2400~3600lm
3600~5600lm4800~5600lm
Colour rendering index (CRI)Ra >70Ra >70
Ra >70Ra >70

WW:2800~3300KWW:2800~3300K
WW:2800~3300KWW:2800~3300K
Colour temperaturePW:4700~5400KPW:4700~5400K
PW:4700~5400KPW:4700~5400K

CW:5700~7100K
    Green		CW:5700~7100K
    Green
CW:5700~7100K
    Green		CW:5700~7100K
    Green
Beam angle120°120°
120°120°
Working ambient temp.-45°C~ +60°C-45°C~ +60°C
-45°C~ +60°C-45°C~ +60°C
IP gradeIP66IP66
IP66IP66
Lifespan≥ 50,000 hrs≥ 50,000 hrs
≥ 50,000 hrs≥ 50,000 hrs
HousingCopper free AluminiumCopper free Aluminium
Copper free AluminiumCopper free Aluminium
Front сoverPolycarbonatePolycarbonate
PolycarbonatePolycarbonate
DemensionΦ60*612mmΦ60*866mm
Φ60*1120mmΦ60*1420mm
Weight1.0kg1,5kg
2.0kg2.5kg
Warranty3 years3 years
3 years3 years
