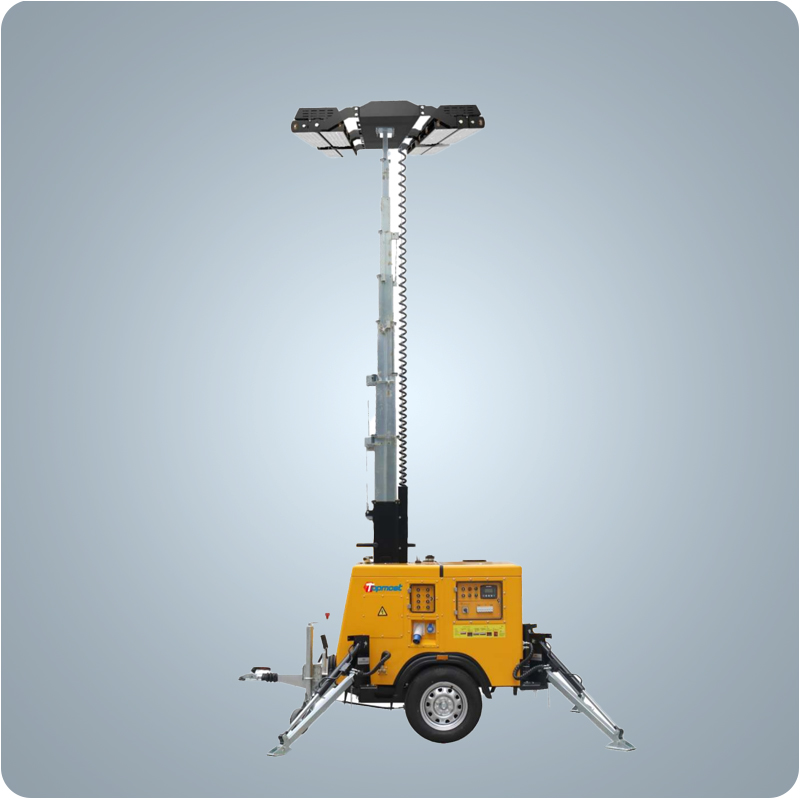

Saker Hawk Series Multi-functional Mobile Lighting Tower

Saker Hawk Series Multi-functional Mobile Lighting Tower

      ●  Generator: China local famous   brand Changchai diesel   engine, durable and reliable, with global warranty. The large-capacity   100-liter fuel tank ensures
              long-term lighting needs on site.
      ●  The luminaire uses   high-brightness OSRAM LEDs, various beam angles optional. The bracket is   adjustable to meet different lighting requirement.
        ●  The luminaire power supply with lightning   surge protection, 6-10KV optional, no licker.
        ●  Electric mast, convenient and fast, saving   time and effort.


￥ 0.00
0.00

      ●  Generator: China local famous   brand Changchai diesel   engine, durable and reliable, with global warranty. The large-capacity   100-liter fuel tank ensures
              long-term lighting needs on site.
      ●  The luminaire uses   high-brightness OSRAM LEDs, various beam angles optional. The bracket is   adjustable to meet different lighting requirement.
        ●  The luminaire power supply with lightning   surge protection, 6-10KV optional, no licker.
        ●  Electric mast, convenient and fast, saving   time and effort.


Technical   Parameters - LED Lighting
   Luminaire Quantity4 units
   Single Luminaire Power320W (Model No.: BBL320)
   Total Power Consumption320W*4
   Total Lumen Output153,600lm
   Rotation0-360° horizontal,
    U bracket 0-90° manual adjustment
   Operating Time (Full of diesel)≥120 hours
   LED Lighting Warranty5 years
Technical Parameters - Mast
   Mast lifting Method   Electrical
Minimum   Height2.45m
   Maximum Height9.05m
Sections5
   RotationManual,   0-350° horizontal
TrailerSingle axle, ball   traction, 165R13 tires,
4 hand-cranked support legs
   Weight800kg
Technical Parameters - Diesel Generator
   Engine BrandChangchai (Model No.: CZ380Q)
   Engine Power12kW
   Start ModeElectric start, mechanical speed control system
   GeneratorWith AVR voltage regulator, speed 1500 rpm,
    rated power 7KVA
   Oil Tank Capacity100L
   Cooling SystemTa 40°C engine driven fan and heat dissipation
   Shock Absorption SystemBuilt-in shock absorber
   Other AccessoriesBattery and battery cable, battery switch,
    silent mufler, random information,
    random accessories
   Packing MethodAnti-collision bubble film and iron
    frame bottom support
