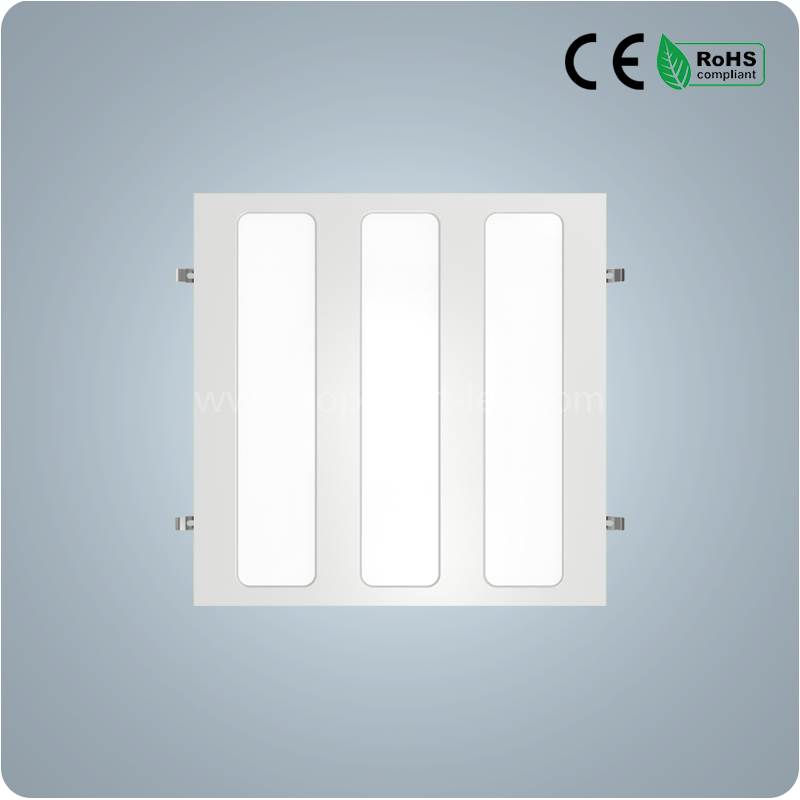

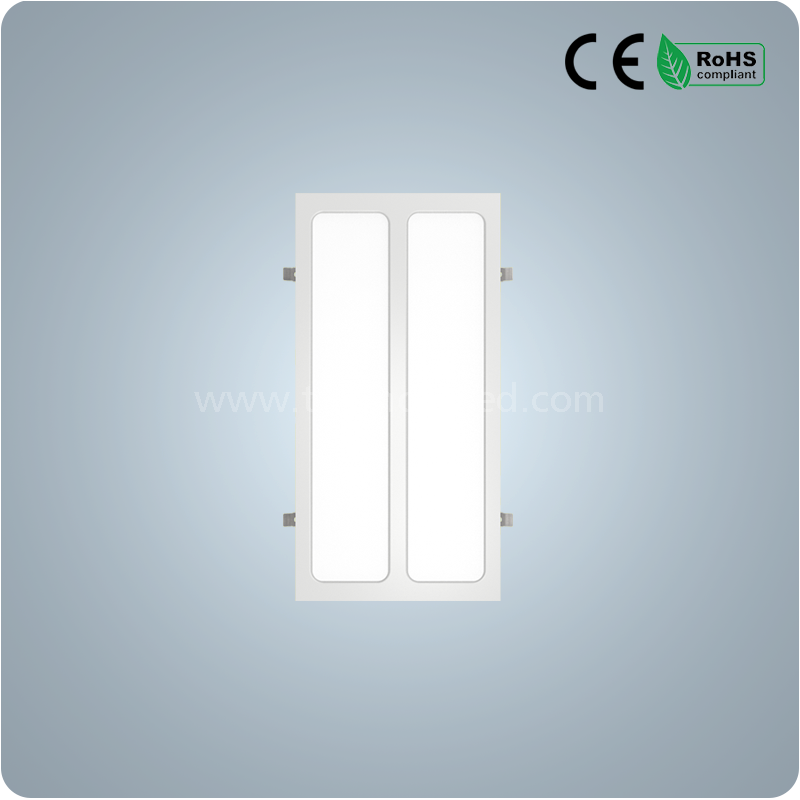

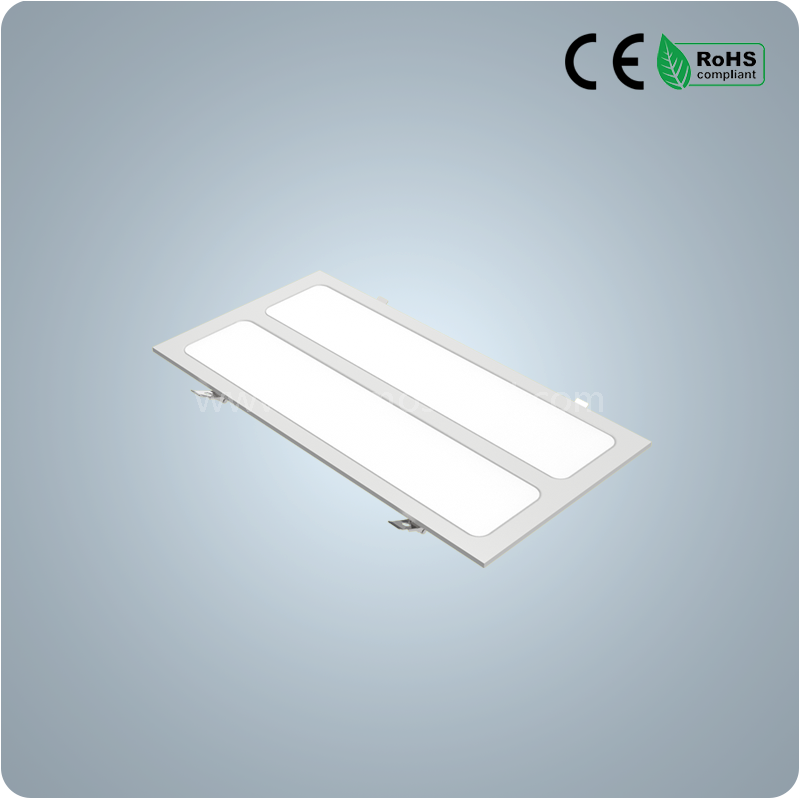

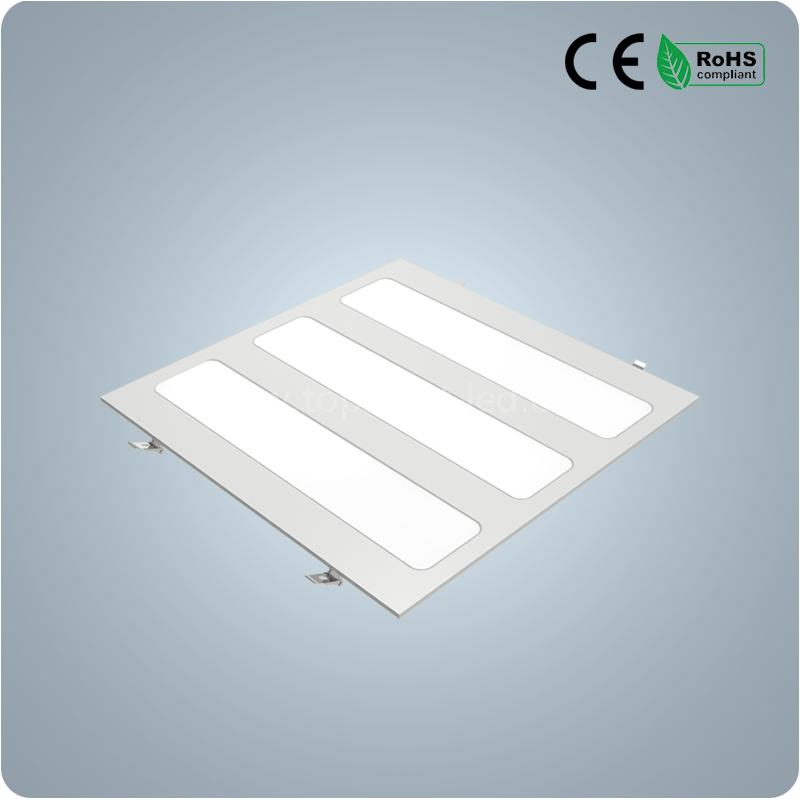

YK2A Series LED Grille Light

YK2A Series LED Grille Light

1. Use high brighthess LED light source, over 50% energy saving than traditional fluorescent

lamp

2. Metal shell to improve the heat dissipation and reliability of the product

3. High thermal conductivity LED aluminum substrate to ensure that the product fully heat

conduction and heat transfer, improve product reliability and life

4. Use imported electronic components which resist high and low temperature keep product

been stable and durable

5. Back light and equipped with a new type of optical material diffuser, high light efficiency,

uniform lighting, no glare, can effectively alleviate eye fatigue

6. Intelligent: Built-in dimming circuit and excuse, can be connected with infrared sensor switch through the operation of dimmer switch. Realize brightness control of single or multiple lamps to help customers achieve scene lighting with remote control

￥ 0.00
0.00


1. Use high brighthess LED light source, over 50% energy saving than traditional fluorescent

lamp

2. Metal shell to improve the heat dissipation and reliability of the product

3. High thermal conductivity LED aluminum substrate to ensure that the product fully heat

conduction and heat transfer, improve product reliability and life

4. Use imported electronic components which resist high and low temperature keep product

been stable and durable

5. Back light and equipped with a new type of optical material diffuser, high light efficiency,

uniform lighting, no glare, can effectively alleviate eye fatigue

6. Intelligent: Built-in dimming circuit and excuse, can be connected with infrared sensor switch through the operation of dimmer switch. Realize brightness control of single or multiple lamps to help customers achieve scene lighting with remote control

Power9-96WwwInput Voltage100~277Vac, d47~62Hz
LED ChipOSRAM /PHILIPS LUMILEDSPower SupplyPF>0.95 THD≤5%
Light effect125lm/wSensorintelligent dimming and
    body sensing optional
Color Temperature2800~7100kCRI>80
Life Time> 60000hrsHousingMetal housing
Temperature-25~+55°CIP GradeIP43/IP54 optional
EmergencyOptional, 2-4hrsBeam Angle80°/140°
Size300*300mm,600*600mm
    ,300*1200mm,600*1200
    mm(optional)		MountingCeiling/Embedded/
    Pendant/etc.
