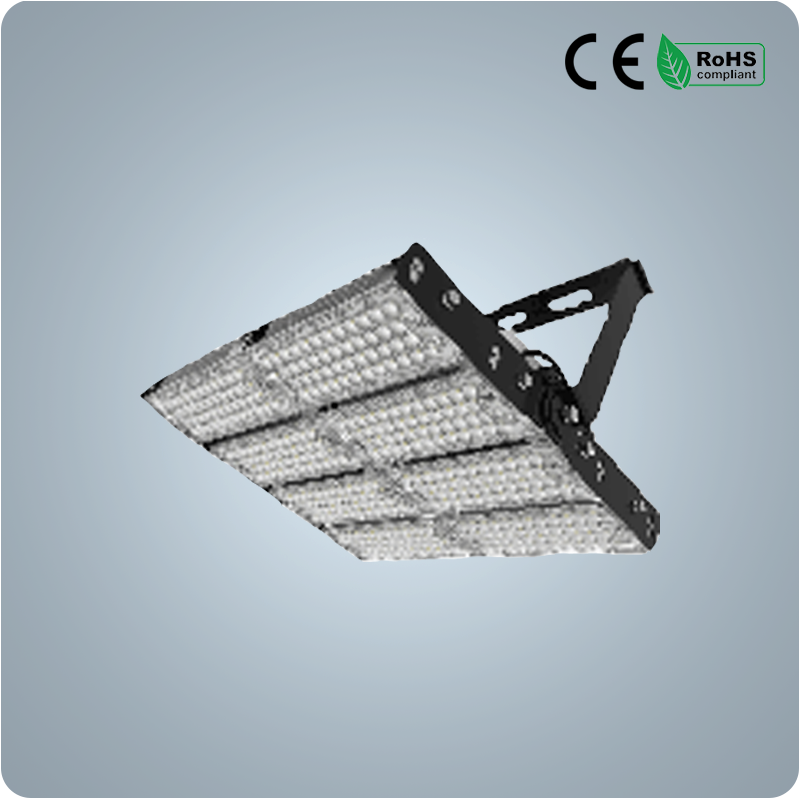

Black Leopard B Series LED Industrial Lighting

Black Leopard B Series LED Industrial Lighting

●Osram led source, high lumen output over 160lm/W.
●Modular design,available in 240W to 1000W.
●Aviation aluminum, thermal conductivity is 2.5 times of die-casting AL.
●Shock and vibration resistant.
●Own design and produced LED drivers are provide reliable operation in harsh environments.
●Capable to work on extreme high and low temperature 45℃+60℃ ,keep good performance.
●IP66 and high corrosion resistance,can be used in ocean environment.
●Lightning protection 6KV, THD≤5%

￥ 0.00
0.00


●Osram led source, high lumen output over 160lm/W.
●Modular design,available in 240W to 1000W.
●Aviation aluminum, thermal conductivity is 2.5 times of die-casting AL.
●Shock and vibration resistant.
●Own design and produced LED drivers are provide reliable operation in harsh environments.
●Capable to work on extreme high and low temperature 45℃+60℃ ,keep good performance.
●IP66 and high corrosion resistance,can be used in ocean environment.
●Lightning protection 6KV, THD≤5%

Power240W300W360W400W450W480W500W600W720W800W1000W
Item No.BBL-B240/ BBL-B240-EBBL-B300/ BBL-B300-EBBL-B360/ BBL-B360-EBBL-B400/ BBL-B400-EBBL-B450/ BBL-B450-EBBL-B480/ BBL-B480-EBBL-B500/ BBL-B500-EBBL-B600/ BBL-B600-EBBL-B720/ BBL-B720-EBBL-B800/ BBL-B800-EBBL-B1000/ BBL-B1000-E
Input Voltage &FrequencyAC 100~277V 47~62Hz
Input Current (mA)860~24001080~30001300~36001440~40001620~45001730~48001800~50002160~60002600~72002880~80003600~10000
Power Factor (PF)≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98≥0.98
LED chipsOSRAMOSRAMOSRAMOSRAMOSRAMOSRAMOSRAMOSRAMOSRAMOSRAMOSRAM
Luminous Flux33600lm42000lm50400lm56000lm63000lm67200lm70000lm84000lm100800lm112000lm140000lm
Dimensions (mm)362 * 132 * 343362 * 132 * 343362 * 132 * 475362 * 132 * 475362 * 132 * 597(A)649 * 133 * 343(B)362 * 132 * 597(A)362 * 132 * 607649 * 133 * 475649 * 133 * 475649 * 133 * 597




649 * 133 * 343(B)649 * 133 * 343(B)649 * 133 * 343(B)


Weight6.0kg6.0kg8.2kg8.2kg10.0kg10.0kg10.0kg12.2kg14.8kg14.8kg17.5kg
Colour Rendering Index (CRI)Ra > 80
Colour TemperatureWW:2800~4000K PW:4000~5400K CW:5400~7100K
Beam angle15°/25°/40°/60°/90°/120°/SL
Working Ambient Temp.-45°C~+60°C (Emergency: -25°C≤Ta≤+55°C)
IP GradeIP66
Lifespan≥60000hrs
HousingCopper-free aluminum
